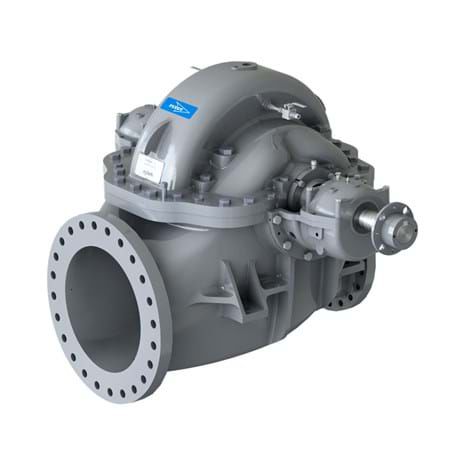

Impeller pump 9800 WS

waterelectricindustrial

Overview PRODUCT FEATURES Flows from 10,000 to 220,000 gpm (2,000 to 50,000 m3/h) Heads from 10 to 600' (3 to 175 m) 24 to 66 inch Discharge (610 to 1676 mm) 245 to 880 RPM PROVEN PERFORMANCE WITH OVER 130 YEARS OF EXPERIENCE: HIGH EFFIENCIES, LOW ENERGY COSTS AND WIDE OPERATING RANGE A wide range of available hydraulics enables customization of pump selections to maximize pumping efficiencies. Pump efficiencies up to 91% save money on operating costs. Pumps are available in a wide variety of metallurgies to suit the particular application. Can be manufactured to NSF 61 compliance for drinking water. Horizontal or vertical mounting saves space and reduces station footprint. Choice of side suction or bottom suction allows application flexibility and lowers the construction costs. Easy to install and service – flanges on common centerlines simplify piping layouts; axially split casing allows for ease of maintenance. Renewable impeller and casing wear rings permit easy maintenance of proper running clearances that will result in increased impeller service life and sustained operational efficiency. Heavy duty design double suction impellers and dual volute casings (most sizes) minimize bearing loads and shaft deflections, therefore providing long term trouble free operation. With full scale performance testing capabilities up to 520,000 GPM (120,000 m3/hr) or 9850 HP (7350 kW) the performance of each pump can be accurately certified before it leaves the factory. Readily-accessible service centers, technical know-how, spare parts, and support to ensure minimal downtime costs and the most cost-effective operations
