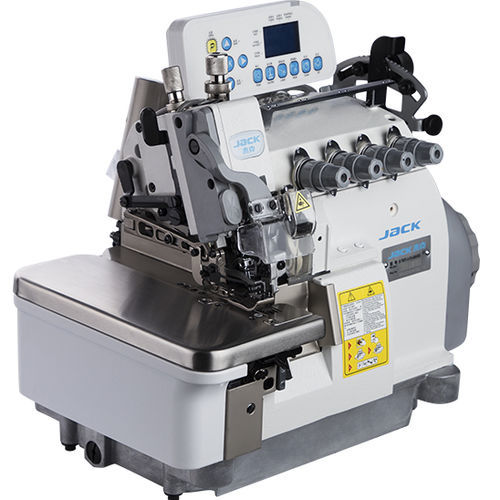

Overlock stitch overlock sewing machine JK-798TE
twin-needlesingle-needle3-thread

overlock stitch overlock sewing machine
overlock stitch overlock sewing machine
overlock stitch overlock sewing machine
overlock stitch overlock sewing machine
overlock stitch overlock sewing machine
overlock stitch overlock sewing machine
overlock stitch overlock sewing machine
Add to favorites
Compare this product


Characteristics

Stitch type
overlock stitch
Number of needles
twin-needle, single-needle
Number of wires
4-thread, 3-thread, 5-thread
Applications
fabric
Configuration
table
Options and accessories
automatic, high-speed, programmable
Stitch length

4 mm, 4.6 mm, 5 mm, 7 mm
(0.157 in, 0.181 in, 0.197 in, 0.276 in)

Stitch width

4 mm, 5 mm, 6 mm
(0 in, 0 in, 0 in)

Weight

29 kg
(64 lb)

Description

Computerized An LCD display has been added to control the new functions such as automatic sewing, photocells and the chaincutter from the panel. Three Sewing Modes Automatic: works through sensors without the use of the pedal Semi-Automatic: works with automatic presser foot lifter and automatic chain cutter Manual: work by selecting the relevant aids from the panel Photocells The photocells allow you to start and finish the seam automatically, as well as activate the chaincutter and the foot lifter. Automatic Electric Chaincutter Thanks to the photocells, the electronic presser foot lifter and chaincutter are automatic at the end of the seam. Optimized Feeding Structure Feeding synchronized with the feed dog, both thin and soft tissues as well as thick fabrics can be fed evenly. Top Feed Thanks to the selector it is easy to adjust the difference ratio between the upper and lower feeds. Optimized Needle Bar Structure Fully enclosed needle bar construction and DLC (diamond like carbon) machining of the needle bar surface. LED Light The adjustable brightness guarantees the precision of threading without straining the eyes. Direct Drive Motor Thanks to the integrated, energy-saving motor, the time required for assembling the machine is reduced to a minimum.
