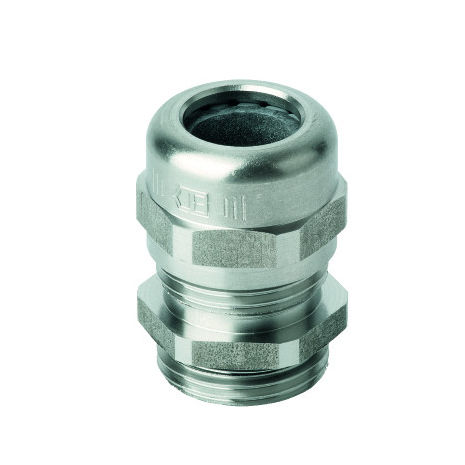

Stainless steel cable gland 50.6xx ES seriesIP68IP69Kmetric
Add to favorites
Compare this product
Characteristics
- Material
- stainless steel
- Protection level
- IP68, IP69K
- Other characteristics
- metric
- Cable diameter
Min.: 3 mm
(0.12 in)Max.: 42 mm
(1.65 in)- Thread diameter
Min.: 12 mm
(0.47 in)Max.: 63 mm
(2.48 in)- Operating temperature
Min.: -40 °C
(-40 °F)Max.: 100 °C
(212 °F)
Description
The PERFECT cable gland made of stainless steel 1.4305 is the perfect cable entry solution for many industrial applications. Features:
- integrated anchorage for cables
- protection against twisting
- wide sealing and clamping range
- for cables from 3 to 42 mm
- easy-to-install
- temperature range -20 °C / +100 °C (dynamic) -40 °C (static, short term)
- Protection grade IP68 / IP69
- Test standard UL 514B
- with metric thread M12 - M63
Catalogs
Jacob Product Catalog
288 Pages
