Stainless steel cable gland WADI one K252-1xxx-zzIP66IP68IP69K
Add to favorites
Compare this product
Characteristics
- Material
- stainless steel
- Protection level
- IP68, IP66, IP69K
- Other characteristics
- threaded
- Cable diameter
Max.: 53 mm
(2.09 in)Min.: 3 mm
(0.12 in)- Thread diameter
Max.: 63 mm
(2.48 in)Min.: 12 mm
(0.47 in)- Operating temperature
Max.: 100 °C
(212 °F)Min.: -40 °C
(-40 °F)
Description

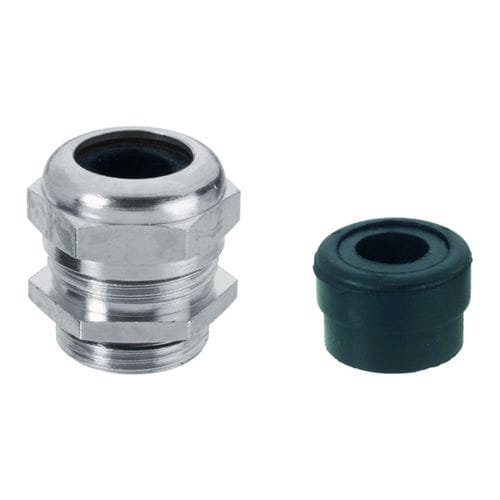

WADI one cable gland stainless steel
The WADI one cable gland made of stainless steel is the perfect cable entry solution for demanding applications.
Features:
- large-area sealing protects the cable
- integrated anchorage with high retention
- wide sealing and clamping range
- for cables from 3 to 53 mm
- the inner sealing ring can be removed easily for larger cables
- high UV, ozone and weather resistancy
- temperature range -40 °C / +100 °C (dynamic)
- protection grade IP 66 / IP68 up to 15 bar (30 min.) / IP69
- material of sealing insert fulfils UL 94 HB
- with metric thread from M12 to M63
