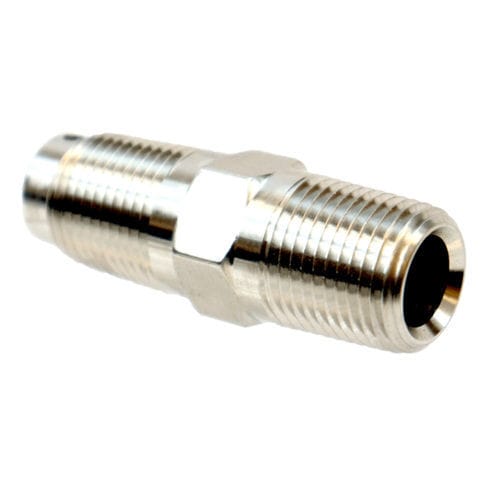

Ball check valve 50155-G004for waterNPTmale-male
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Fluid
- for water
- Connexion
- NPT
- Body
- male-male
- Applications
- for the chemical industry, for pharmaceutical applications, for the food industry, for plastic melt
- Material
- alloy
- Other characteristics
- compact
- DN
0.5 mm
(0.02 in)- Pressure
2,500 psi
- Temperature
Max.: 650 °F
(343 °C)Min.: -15 °F
(-26 °C)
Description
Compact 1/2″ single ball check valve
Alloy 20 ideal for applications involving sulphuric acid
Corrosion resistance and resists pitting
Also suitable for chemical, food, pharmaceutical, and plastics industries
14 threads per inch
Flow/CV= 1.49 gpm
2-1/4″ Length
7/8″ Hex Size
No spring
Easily disassembled for inspection and cleaning
MNPT x MNPT
