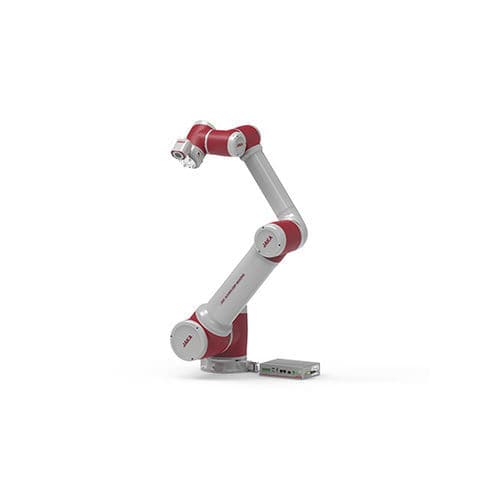

Articulated robot Ai 18
6-axishandlingfloor-mounted

articulated robot
articulated robot
Add to favorites
Compare this product


Characteristics

Type
articulated
Number of axes
6-axis
Function
handling
Mounting
floor-mounted, ceiling-mounted, wall-mounted
Protection level
IP54
Payload

18 kg
(39.683 lb)

Reach

1,073 mm
(42.24 in)

Repeatability

0.03 mm
(0.0012 in)

Operating temperature

Max.: 50 °C
(122 °F)

Min.: 0 °C
(32 °F)

Weight

35 kg
(77.2 lb)

Description

Innovatively adopting the product design principles of JAKA S³ (Smart, Simple, Small), and integrating with advanced robot technologies such as wireless teaching, graphical programming and visual protection, it revolutionizes the way of Human-Cobot interaction, improves the safety of human-machine cooperation and greatly reduces the threshold of robots using. Meanwhile, JAKA All-in-one Cobots deeply integrates plug-and-play vision to ensure the natural interaction and autonomous adaptation among cobot, human and operating environment, which significantly broadens the application boundary of robot. Recommended industries and applications: Logistics, Medical Devices, Automobile and Auto Parts, 3C Electronics
