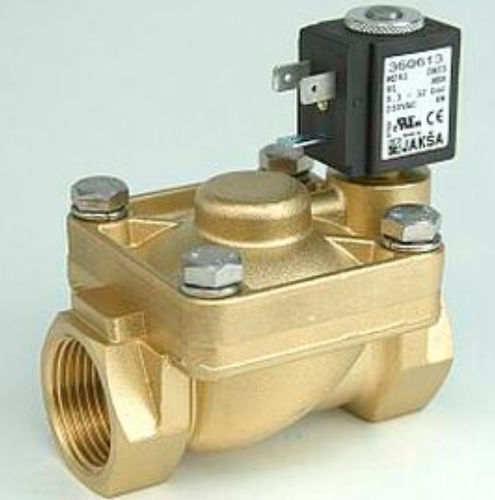

Diaphragm solenoid valve M261pilot-operated2-wayNC
Add to favorites
Compare this product
Characteristics
- Control
- pilot-operated
- Ports/positions
- 2-way
- Function
- NC
- Medium
- for water, air
- Body
- IP65, brass
- Process connection
- G 1
- Other characteristics
- ISO, plug, diaphragm
- DN
1 in
- Voltage
Max.: 230 V
Min.: 24 V
- Temperature
Max.: 100 °C
(212 °F)Min.: -10 °C
(14 °F)- Pressure
Max.: 10 bar
(145 psi)Min.: 0.3 bar
(4.4 psi)
Description
Internal parts: stainless steel
Seals: NBR, EPDM, FPM
Viscosity: max 21 mm2/s
Response times: opening 0.05 - 1 s; closing 0.5 - 4 s
Duty cycle: continuous (ED100%)
Cycling rate: 10 - 100 cycles/min
Electrical protection: IP65 (with plug to ISO 6952 / ISO 4400)
Long term use in humid environment requires the use of sealing sets.
