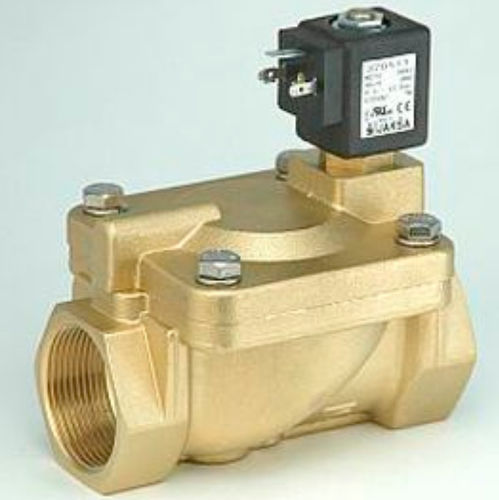

Diaphragm solenoid valve M270 pilot-operated2-wayNO
Add to favorites
Compare this product
Characteristics
- Control
- pilot-operated
- Ports/positions
- 2-way
- Function
- NC, NO
- Medium
- water, air
- Body
- IP65, brass
- Process connection
- G 1 1/2
- Other characteristics
- ISO, plug, diaphragm
- DN
1.5 in
- Voltage
Min.: 24 V
Max.: 380 V
- Temperature
Min.: -10 °C
(14 °F)Max.: 100 °C
(212 °F)- Pressure
Min.: 0.5 bar
(7.3 psi)Max.: 12 bar
(174 psi)
Description
Internal parts: stainless steel
Seals: NBR, EPDM, FPM
Viscosity: max 21 mm2/s
Response times: opening 0.05 - 1 s; closing 0.5 - 4 s
Duty cycle: continuous (ED100%)
Cycling rate: 10 - 100 cycles/min
Electrical protection: IP65 (with plug to ISO 6952 / ISO 4400)
Long term use in humid environment requires the use of sealing sets.
