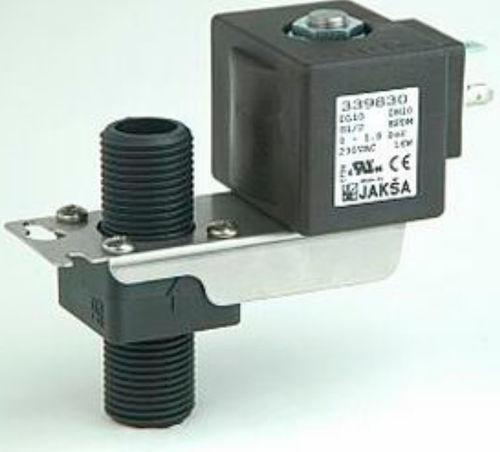

Total isolation solenoid valve DL10 pilot-operated2-wayNC
Add to favorites
Compare this product
Characteristics
- Control
- pilot-operated
- Ports/positions
- 2-way
- Function
- NC
- Medium
- for water, air
- Body
- plastic, IP65
- Process connection
- G 1/2, G 3/8
- Other characteristics
- ISO, total isolation, plug
- DN
0.375 in, 0.5 in
- Voltage
12 V, 24 V, 230 V
- Temperature
Max.: 75 °C
(167 °F)Min.: -10 °C
(14 °F)- Pressure
Max.: 3 bar
(43.5 psi)Min.: 0 bar
(0 psi)
Description
Internal parts: none in contact with fluid
Seals: NBR, EPDM, FPM
Fluids: corrosive
Viscosity: max 21 mm2/s
Response times: 10 - 20 ms
Duty cycle: continuous (ED100%)
Cycling rate: 10 - 100 cycles/min
Electrical protection: IP65 (with plug to ISO 6952 / ISO 4400)
Long term use in humid environment requires the use of sealing sets.
