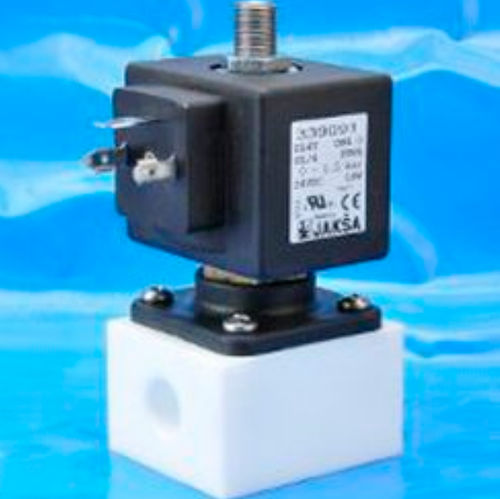

Total isolation solenoid valve DL4Tpilot-operated2-wayNC
Add to favorites
Compare this product
Characteristics
- Control
- pilot-operated
- Ports/positions
- 2-way
- Function
- NC
- Medium
- for water, air
- Body
- PTFE, IP65
- Process connection
- G 1/4
- Other characteristics
- ISO, total isolation, plug, diaphragm
- DN
0.25 in
- Voltage
24 V
- Temperature
Max.: 75 °C
(167 °F)Min.: -10 °C
(14 °F)- Pressure
Max.: 1.5 bar
(21.8 psi)Min.: 0 bar
(0 psi)
Description
Internal parts: none in contact with fluid
Seals: NBR, EPDM, FPM
Fluids: corrosive
Viscosity: max 21 mm2/s
Response times: 10 - 20 ms
Duty cycle: continuous (ED100%)
Cycling rate: 10 - 100 cycles/min
Electrical protection: IP65 (with plug to ISO 6952 / ISO 4400)
Long term use in humid environment requires the use of sealing sets.
Catalogs
DL4T G1/4 DN4
1 Pages
