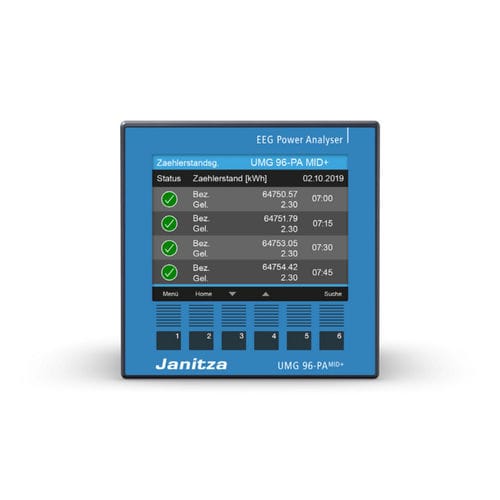

Power monitoring device 96-PA-MID+
currentresidual currentvoltage

power monitoring device
power monitoring device
power monitoring device
Add to favorites
Compare this product


Characteristics

Type
power, current, residual current, voltage
Applications
measurement, transformer, power quality
Configuration
modular
Interface
Modbus, Ethernet

Description

Enhanced options and recording of data relevant for billing. MID certification to 2014/32/EU Recording of energy values relevant for billing 1A / 5A current transformer, optional 100 V voltage transformer Logbook for recording changes of variables of legal relevance (such as CT ratios) Password protection Terminal covers for the application of lead seals When used with the Ethernet module, additional connection options for up to 30 simple MID energy meters as slave devices, e.g. of the type B23 312-10J All functions of the basic device and its modules are retained Simple modular expansion The device can be quickly and easily expanded with an Ethernet interface, 2 differential current inputs, a temperature input, and a 4th current input by means of a plug-on expansion module. When using the Ethernet module, there are also additional connection options for up to 30 simple MID energy meters as slave devices, e.g. of type B23 312-10J. Record temperature and monitor via integrated comparator Ethernet interface and Modbus gateway Residual current measurement or DC power measurement Neutral conductor measurement (I4 - current measurement)
