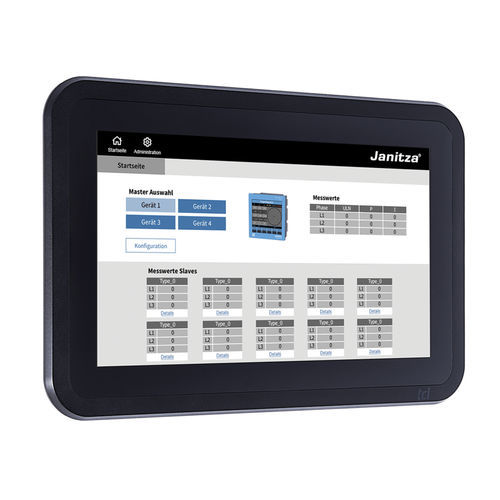

Smart monitoring device 100-WEB

powercurrentvoltage

Visualisation of the Energy measured values up to 93 devices The Smart Energy Panel JPC 100-WEB is used for optimum, central display and monitoring of energy measured values. Modbus slave devices (e.g. Janitza UMG 103-CBM) are integrated either via the gateway function of the master device or directly via the RS-485 interface. The clear 10-inch touchscreen is characterised by its simple and user-friendly menu navigation. Measurement data independent of location Direct ac- cess to the device homepage, optionally also via remote access, is provided by the web capability of the Smart Energy Panel. Remote access is also possible via Team- Viewer. A USB connection provides for simple export of the measurement data. Analysis and documentation With the GridVis® software the energy data can be evaluated, documented and further processed. GridVis® offers comprehensive reporting for this purpose. Alarm management and data storage The clear pre- sentation of threshold value exceedances enables hazards to be identified at an early stage. In addition, the e-mail notification function can be activated in the event of viola- tions. Initially defined threshold values for voltage, current and power can be filtered, acknowledged and stored. The storage of minimum and maximum values is also possible. User-friendly funtions Intuitive Local operation directly at hte system's switch cabinet Visualisation Display of all current and energy measured values Display and storage of the last minimum and maximum values Topology view of the connected devices Visualisation of the main and ancillary measurements
