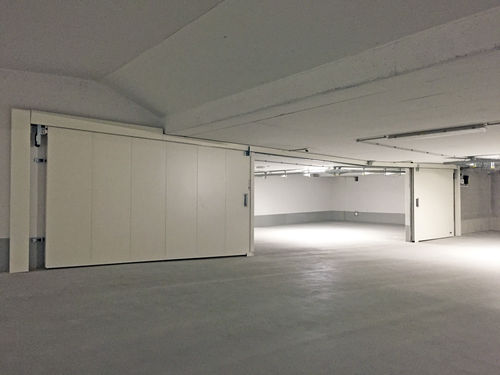

Soundproof gate ACOUSTICLINE 45 DB

slidingelectronically controlledbuilding

Jansen is also your professional partner for noise insulation. This is neccessary where loud noises can enter from outside into a building, noises from inside to outside or noises within the building. The door leaf consists of several 300 - 1100 mm wide elements (depending on the door width). The separate elements are joined to a sturdy door leaf through a special linking system. The thickness of the door leaf is only 63 mm. The surface consists of zinc-coated 1,5 mm thick steel sheets. The running-in profile and the labyrinth profile are zinc-coated. Soundproofing sliding door certified according to DIN EN ISO 140-3. This door reaches a soundproofing value of 45 dB (Rw,P). Higher soundproofing requirements and special equipment are available on request. Each door element is guided in ball bearing mounted castors. The cold-milled, zinc-coated C-profiles are mounted to the ceiling by means of brackets. The guide rail casings are zinc-coated. The floor guidance is located laterally of the clear width. As fittings a C-shaped handle is used on the opposing wall, a shellshaped handle on the wallside. The opening of the door is limited by end position dampeners which are mounted on consoles. The door closes automatically due to closing weights, while a constant closing speed is ensured by a hydraulic closing speed control. As a standard feature a free-run device enables the door to be handled easily under normal application conditions. An electric drive with dead-man's control or pulse contact control is possible.
