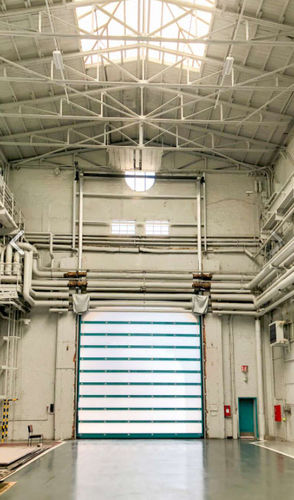

Sectional door SUNLINE 44

polycarbonateindustrialhangar

Polycarbonate gates are highly inherent stable and are ideal for large dimensions, the material is robust and flexible. gates up to 12 metre width are easily realisable. The gate leaf consists of translucent polycarbonate sections with surrounding, thermally separated aluminium frame sections (44 mm thick door leaf). The high inherent stability of the section enables a flush design in wind load class 3 with a width of 12,000 mm (80 mm thick door leaf). Wind load class 4 was achieved in test at a width of 10,000 mm. The additional-leafed construction ensures good insulation values and low self-weight. The construction is similar to the awarded hingeless sectional door. The castors are inserted in the front side of the sections and are not visible in mounted condition. The guide rails are completely closed and equipped with profile seal. The look is visually sophisticated and flush and also can be realised according the facade. A customised planning of the gates as well as an order-related production are the trademark of the company Jansen. Door leaf out of translucent polycarbonate sections with framed, thermally separated aluminium frame profiles. Multi-shell construction, which ensures very good insulation values and a light dead weight. Thickness of door leaf is 44 mm. Doors up to a maximum width of 6,000 mm can be executed with 40 mm thick door leaf. The castors are inserted in the front side of the sections and are not visible in mounted condition. The floor and lintel sealing consist of EPDM profiles with a lip seal.
