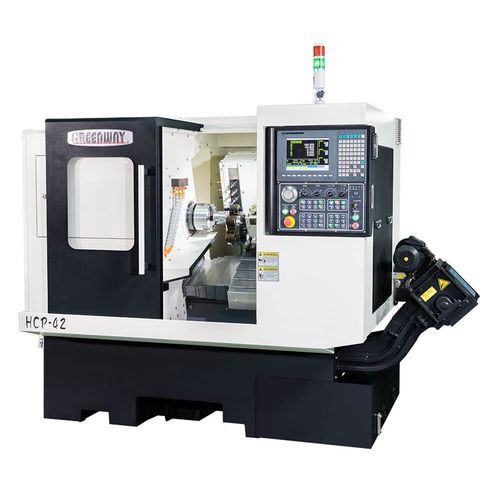

CNC milling-turning center HCP-42

horizontal2-axisspindle

This model combined the functions of turning and milling and can provide customers with more working conditions. C-axis for arbitrary angle spindle positioning and contour control. Optional Y-axis live tooling device and end live tooling device can be used for inner and outer diameter turning and milling. Optional：Y-axis side milling device (4-shaft, ER-20) or side milling + end face milling device (8-shaft, ER-20), and the distance between each shaft reaches 55mm. The linear way configuration is processing speed, which can greatly increase the customer's production efficiency. Max. turning dia mm - Ø250 Max. turning length mm - 150 Hydraulic chuck inch - 6" Bore of spindle mm Ø45 Max. bar feeding dia mm Ø42 X-axis rapid travel speed m/min 25 Z-axis rapid travel speed m/min - 25 O.D. turning tool size mm - □20 I.D. turning tool size mm - Ø20 Coolant tank volume L - 110 Cutting coolant pump HP - 1 Collet type -- - C44 / 173E X/Z-axis servo motor KW - 1 Guideway type -- - Linear guideway Approx. machine size (L×M×H) mm - 2100×1700×1850
