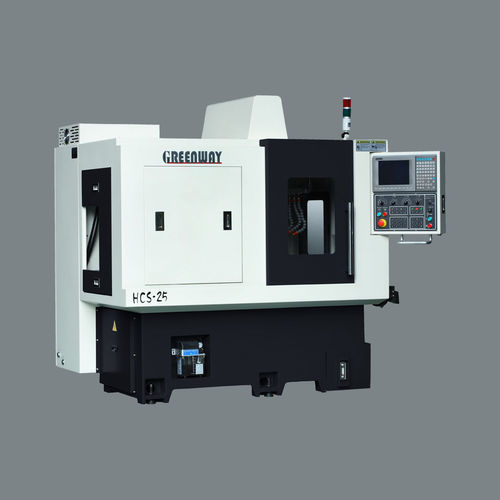

CNC Swiss lathe HCS-253-axisfor shaft machininghigh-speed
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 3-axis
- Applications
- for shaft machining
- Performance
- high-precision, powerful, high-speed, high-rigidity
- Associated function
- tapping, milling
- Options and accessories
- with linear motor
- Diameter
25 mm
(0.98 in)- Spindle speed
6,000 rpm
(37,699.112 rad.min-1)- Axe X
150 mm
(6 in)- Axe Z
180 mm, 310 mm
(7 in, 12 in)- Rapids on X
25 m/min
- Rapids on Z
25 m/min
- Nominal power
3.8 kW, 5.5 kW
(5.2 hp, 7.5 hp)- Overall lenght
2,100 mm
(83 in)- Overall width
1,580 mm
(62 in)- Overall height
2,000 mm
(79 in)- Weight
2,400 kg
(5,291 lb)
Description
Max.18 tools and works with Synchronous rotary guide bushing unit to process long shaft workpieces.
Rotary hydraulic cylinder provides fast and stable clamping force.
It can depend on different demand of machining to with or without Synchronous rotary guide bushing unit.
Bore of spindle
mm - 28Ø
X/Y/Z-axis servo motor
KW - 1.0
No. of O.D. turning tools
pcs - 6
O.D. turning tool size
mm - 16□
No. of I.D. turning tools
pcs - 5
I.D. turning tool size
mm - 20Ø
Collet type
-- - Citizen 25#
Guide bush type
-- - Citizen 25#
Servo motor of live tooling
KW - 1
No. of cross side live tooling
pcs - 4
Size of f cross side live tooling
-- - ER-16
No. of end side live tooling
pcs
3 (opt)
Size of end side live tooling
-- - ER-20 (opt)
Coolant tank volume
L - 120
Coolant pump for spindle
HP - 1
Automatic lubrication system
c.c/15min
3~6
