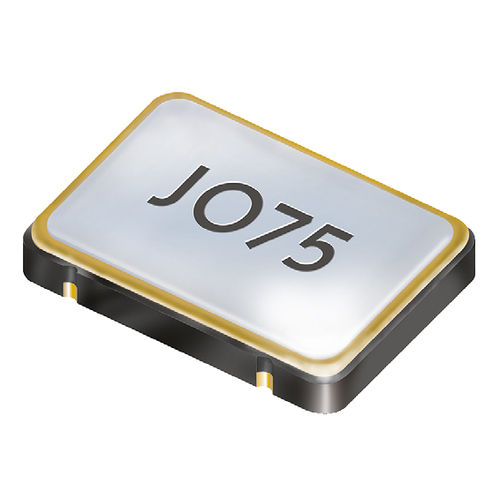

Crystal oscillator JO75

electromechanicalSMDindustrial

Oscillator JO75 · 1.8 V - SMD Oscillator with Stop Function • 7.5 x 5.0 mm - LVCMOS / HCMOS compatible output - Low phase jitter, no PLL - Seam sealed ceramic/metal package range STD & T1 0.50 ~ 50.0 MHz (30 pF max.) 0.50 ~ 160.0 MHz (15 pF max.) T2 2.0 ~ 120.0 MHz (15 pF max.) T3* 2.0 ~ 120.0 MHz (15 pF max.) frequency stability over all** ± 20 ppm ~ ± 100 ppm (table 1) current consumption see table 2 supply voltage VDC 1.8 V ± 10 % (±5 % for stab. C & D) temperature operating -10 °C ~ +70 °C (STD) -40 °C ~ +85 °C (T1) -40 °C ~ +105 °C (T2) -40 °C ~ +125 °C (T3*) storage -55 °C ~ +125 °C output rise & fall time see table 3 load max. 15 pF / 30 pF (≤ +85 °C and ≤ 50.0 MHz) current max. 2.8 mA / 4 mA (T2 & T3*) low level max. 0.2 x VDC / 0.4 V for T2 & T3* high level min. 0.8 x VDC / VDC - 0.4V for T2 & T3* output enable time max. 10 ms output disable time max. 150 ns / 200 ns (T2 & T3*) start-up time max. 10 ms standby function stop standby current max. 10μA / 20μA (for T2 & T3*) phase jitter 12 kHz ~ 20.0 MHz < 1.0 ps RMS symmetry at 0.5 x VDC 45% ~ 55% typ. (40% ~ 60% max.)
