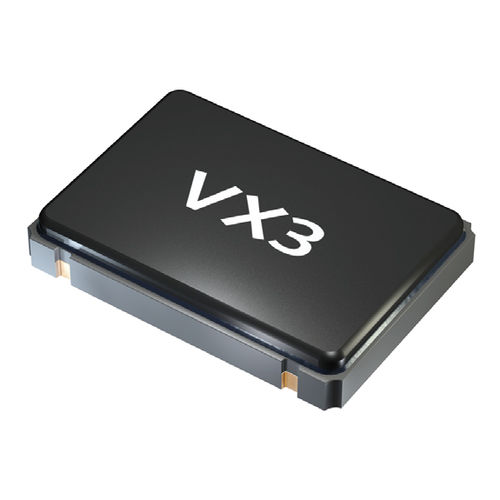

Oscillator VX3 · 1.8 V
- SMD Oscillator with Stop Function, 7.0 x 5.0 mm
- preferred type for extended temperature range
- full ceramic package
frequency range 0.5 ~ 40.0 MHz
higher frequencies on request 40.1 ~ 125.0 MHz
frequency stability
over all*
± 20 ppm ~ ± 100 ppm
see table 1
current consumption see table 2
supply voltage VDC 1.8 V ± 10%
temperature operating -10 °C ~ +70 °C / -40 °C ~ +85 °C
storage -55 °C ~ +125 °C
output rise & fall time see table 3
load max. 30 pF
current max. 2.8 mA ( 40 MHz)
low level max. 0.1 x VDC
high level min. 0.9 x VDC
output enable time max. 10 ms
output disable time max. 200 ns
start-up time max. 10 ms
standby function stop
standby current max. 10 µA ( 40 MHz)
phase jitter 12 kHz ~ 20.0 MHz < 1.0 ps RMS
symmetry at 0.5 x VDC 45% ~ 55% typ. (40% ~ 60% max.)
