XO oscillator JOD53

electromechanicalSMDindustrial

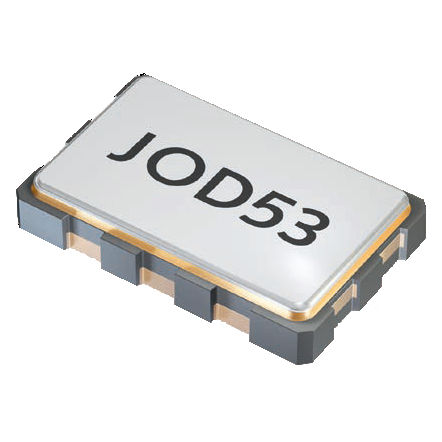

Oscillator JOD53 · LVDS - SMD Low Voltage LVDS Oscillator, 5.0 x 3.2 mm - drives fast LVDS logic - complementary outout, low EMI - compact & flat ceramic / metal package frequency range 65.0 ~ 190.0 MHz frequency stability over all* ±25 ppm ~ ±100 ppm (see table 1) current consumption 25 mA max. supply voltage VDC 3.3 V ±5% / 2.5 V ±5% temperature operating -20°C ~ +70°C (TO) -40°C ~ +85 °C (T1) -40°C ~ +125 °C (T2 ∆) -40°C ~ +125 °C (T3 ∆) storage -55 °C ~ +125 °C output rise & fall time 0.4 ns (20% ~ 80% of Vpp) load nom. 100 � differential swing min. 0.33 Vp-p typ. / 0.25 Vp-p min. offset voltage 1.25 V ± 0.125 V output enable time max. 10 ms output disable time max. 200 ns start-up time max. 10 ms standby function stop standby current max. 10 µA phase jitter 12 kHz ~ 20.0 MHz < 0.5 ps RMS symmetry at 50% of Vpp 45% ~ 55% typ. (40% ~ 60% if T3)
