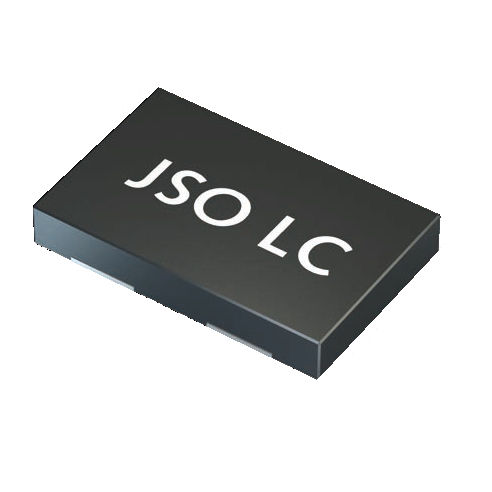

MEMS Oscillator
JSO LC series · 1.8 V
- low power oscillator with HCMOS/LVCMOS output
- compatible to industry standard packages 2016 – 7050
- extended shock & vibration resistance & temperature range
- configured to customer's specification
- very fast delivery service
frequency range 1.0 ~ 110.0 MHz
115.0 ~ 137.0 MHz
frequency stability over all ±20 ppm ~ ±50 ppm
current consumption
supply voltage VDC 1.8 V ± 10%
temperature operating T0 = -20°C ~ +70°C
T1 = -40°C ~ +85°C
T2 = -40°C ~ +105°C
T3 = -40°C ~ +125°C
T8 = -55°C ~ +125°C
storage -55°C ~ +150°C
output logic HCMOS/LVCMOS
rise & fall time 4.2 ns max. at 15 pF / 6.8 ns max. at 30 pF
load max. 30 pF max. recommended (≤74.0 MHz)
15 pF max. recommended (>74.0 MHz)
other load capacitances possible,
see supplementary document
current max. 2 mA
low level max. 0.1 x VDC
high level min. 0.9 x VDC
standby function (e/d) stop (S), tristate-only (T) or none (N),
output enable time max. 5 ms (S) / 150 ns (T)
output disable time max. 150 ns
start-up time max. 5 ms
standby current max. 2 µA (for stop (S),
phase jitter 12 kHz ~ 20 MHz < 3.0 ps RMS
symmetry at 0.5 x VDC 45% ~ 55% (standard)
