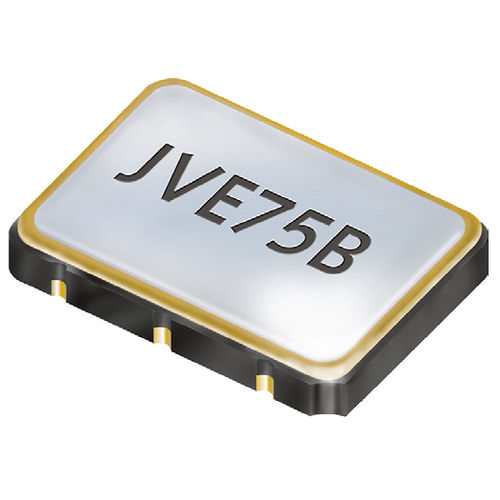

VCXO oscillator JVE75B
electromechanicalSMDindustrial

VCXO oscillator - JVE75B - Jauch Quartz - electromechanical / SMD / industrial
VCXO oscillator - JVE75B - Jauch Quartz - electromechanical / SMD / industrial
Add to favorites
Compare this product


Characteristics

Type
VCXO
Technology
electromechanical
Other characteristics
SMD
Domain
industrial
Frequency

Max.: 800 MHz

Min.: 12 MHz

Description

Oscillator VCXO · PECL - SMD PECL VCXO, 7.5 x 5.0 mm - uses quartz crystal at fundamental mode and PLL - high pulling range ± 150 ppm - complementary PECL output, low EMI - ceramic/metal package frequency range 12.0 ~ 800.0 MHz frequency stability over all* ± 25 ppm / ± 50 ppm frequency pulling range min. ± 150 ppm pulling control voltage 1.65 V ± 1.5 V** pulling control input imped. min. 60 k� current consumption 120 mA max. supply voltage VDC 3.3 V ±5% temperature operating -10°C ~ +70°C / -40 °C ~ +85 °C storage -40°C ~ +85 °C output rise & fall time 1.0 ns (20% ~ 80% of Vpp)*** load nom. 50 � at 1.3 V low level max. 1.7 V high level min. 2.2 V standby function yes output enable time max. 10 ms output disable time max. 50 ns start-up time max. 10 ms standby function stop phase jitter 12 kHz ~ 20.0 MHz < 5.0 ps RMS symmetry at 50% of Vpp 45% ~ 55% typ. (40% ± 60% max.)
