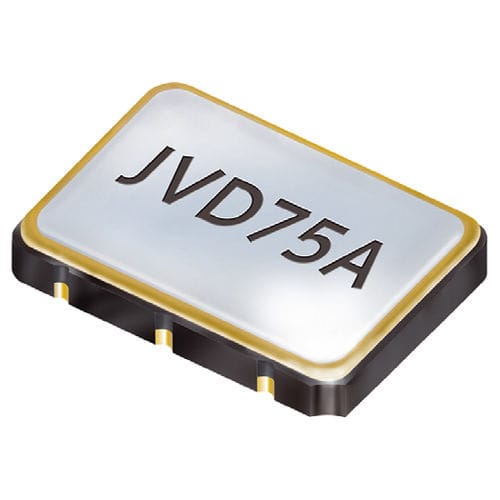

VCXO oscillator JVD75A

electromechanicalSMDlow phase noise

Oscillator VCXO · LVDS - SMD LVDS VCXO, 7.5 x 5.0 mm - uses quartz crystal in MESA technology - low phase noise + jitter - complementary LVDS output, low EMI - ceramic/metal package frequency range 50.0 ~ 700.0 MHz frequency stability over all* ± 25 ppm / ± 50 ppm frequency pulling range min. ± 80 ppm pulling control voltage 1.65 V ± 1.5 V** pulling control input imped. min. 60 k� current consumption 80 mA max. supply voltage VDC 3.3 V ±5% temperature operating -10°C ~ +70°C / -40 °C ~ +85 °C storage -40°C ~ +85 °C output rise & fall time 1.0 ns (20% ~ 80% of Vpp) load nom. 100 � differential swing min. 0.35 Vp-p offset voltage 1.25 V ± 0.125 V standby function yes output enable time max. 10 ms output disable time max. 150 ns start-up time max. 10 ms phase jitter 12 kHz ~ 20.0 MHz < 1.0 ps RMS symmetry at 50% of Vpp 45% ~ 55% typ. (40% ± 60% max.)
