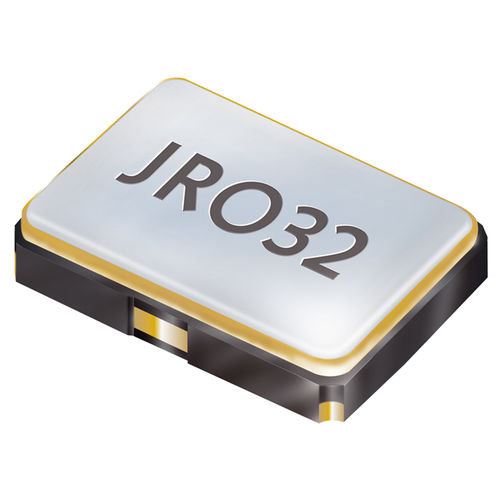

XO oscillator JRO32

electronictuning forkindustrial

Oscillator JRO32 • 32.768 kHz - Ceramic / Metal Package, 3.2 x 2.5 mm - Low Power Type for Real Time Clocks (RTC) - Uses Internal Tuning Fork Crystal - Variable Supply Voltage 1.5 – 5.0 V frequency 32.768 kHz frequency tolerance at 25 °C +5 ±20 ppm frequency stability over temp. (ref to frequ. at +25 °C) -90 ppm ~ +10 ppm for -20 °C ~ +70 °C -140 ppm ~ +10 ppm for -40 °C ~ +85 °C current consumption (no load) 2.5 μA (5.0 V), 1.5 μA (3.3 V) supply voltage range VDC 1.5 V ±10% ~ 5.0 V ±10% temperature operating -10 °C ~ +70 °C / -40 °C ~ +85 °C storage -55 °C ~ +125 °C output rise & fall time 200 ns load max. 15 pF current max. 400 µA low level max. 0.4 V high level min. VDC -0.4 V output enable time 0.15 s/typ. 0.5 s/max. output disable time max. 150 ns start-up time max. 1 s standby function tristate standby current max. 1 µA symmetry at 0.5 x VDC 40% ~ 60% max.
