VCXO oscillator JV75

electromechanicalSMDindustrial

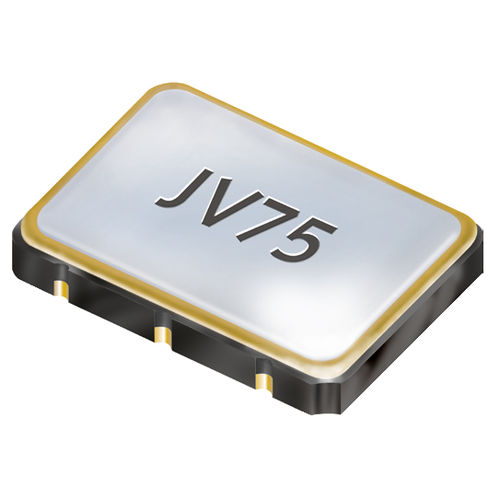

Oscillator JV75 · VCXO · 5.0 V - SMD Voltage Control Crystal Oscillator, 7.5 x 5.0 mm - two pinout versions available - ceramic/metal package frequency range 1.0 ~ 80.0 MHz frequency stability over all* ± 25 ppm1) / ±50 ppm see table 1 current consumption see table 2 supply voltage VDC 5.0 V ± 5 % frequency pulling range min. ± 50 ppm / ± 100 ppm / ± 150 ppm2) pulling control voltage 2.5 V ± 2.0 V** pulling linearity max. < 10% temperature operating -10 °C ~ +70 °C / -40 °C ~ +85 °C storage -55 °C ~ +125 °C output rise & fall time see table 3 load max. 15pF current max. 8 mA low level max. 0.1 x VDC high level min. 0.9 x VDC standby function yes start-up time max. 10 ms symmetry at 0.5 x VDC 45% ~55% max.
