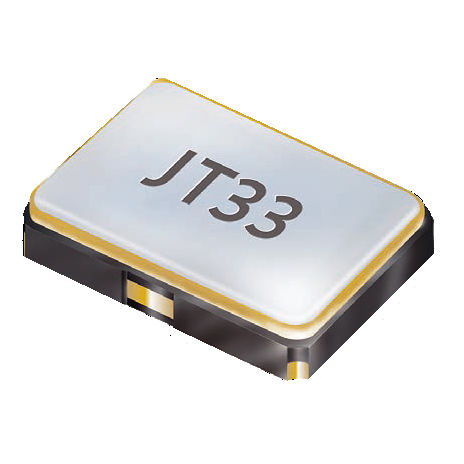

VCTCXO oscillator JT33V

electromechanicalSMDindustrial

Oscillator JT33(V) · (VC)TCXO - Temp. Compensated Crystal Oscillator, 3.2 x 2.5 mm - low power VCTCXO or TCXO - temperature range -40 °C ~ +85 °C available - ± 1.0 ppm stability available - ceramic/metal package frequency range 8.0 ~ 52.0 MHz frequency tolerance/ stability at +25°C ± 1.5 ppm (incl. 2x reflow) temperature ± 1 ppm ~ ± 5 ppm aging first year ± 1 ppm supply voltage ± 0.2 ppm (at VDC ±5 %) load change ± 0.2 ppm current consumption 2.5 mA max. supply voltage VDC 1.8 / 2.5 / 2.8 / 3.0 / 3.3 (±5 %) temperature operating storage -40 °C ~ +85 °C output load nom. 10 KΩ // 10 pF level min. 0.8 Vpp (clipped sine) external tuning range JT33V ±8 ppm min. external tuning voltage JT33V 0.9 V ± 0.9 V at VDC = 1.8 V (standard) 1.5 V ± 1.0 V at VDC ≥ 2.5 V (standard) 1.4 V ± 1.0 V at VDC ≥ 2.5 V (option) start-up time max. 2.5 ms phase noise at 100 Hz -109 dBc/Hz typ. at ƒo at 1 KHz -133 dBc/Hz typ. 26 MHz at 10 KHz -148 dBc/Hz typ.
