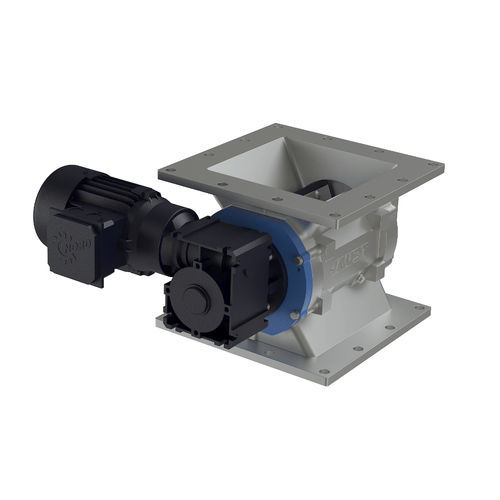

Pneumatic conveying rotary valve ZSFi
for bulk materials

pneumatic conveying rotary valve
pneumatic conveying rotary valve
pneumatic conveying rotary valve
Add to favorites
Compare this product


Characteristics

Applications
for pneumatic conveying, for bulk materials

Description

For discharge of free flowing bulk material out of filters, separators and cyclones. Product properties NOMINAL SIZES 0: 250, 300 NOMINAL SIZES ■ : 250x250,300x300 CONVEYING CAPACITY (M3/H) : 3,0 - 55 TEMPERATURE : T80 MATERIAL HOUSING / BEARING PLATES : Cast iron MATERIAL FEEDER WHEEL : Structural Steel MATERIAL SEALING STRIPS : Vulcanized-fabric, PU, PTFE, structural Steel, stainless Steel, hardox FEEDER WHEEL: WITHOUT boundary disks 8 pockets BEARING : Bail bearing opposite driven end, driven end supported by gear motor SHAFTSEAL: Felt rings, shaft sealling rings POWER TRANSMISSION: Flange mounted gear motor WEAR PROTECTION : Carbo-/ chromesteel-/ chromo-/ nickel-coat ATEX DEVICE : Ex-zone inside / outside 20,21, 22 / 21,22 DUST Ex-zone inside / outside 1,2/ 1,2 GAS ATEX PROTECTIVE SYSTEM (EXZÜ) : KSt-value 0 up to <= 300 Max. explosion pressure 1 barü Also for metallic bulk material Not for gas zone inside
