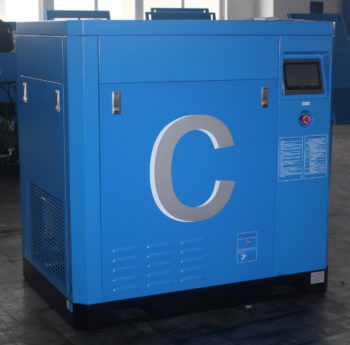

Screw compressor PM seriesairelectrically-poweredfixed
Add to favorites
Compare this product
Characteristics
- Technology
- screw
- Type
- air
- Power source
- electrically-powered
- Portability
- fixed
- Other characteristics
- cooled, waterproof
- Pressure
12 bar, 13 bar
(174.05 psi, 188.55 psi)- Flow
Min.: 900 l/min
(237.75 us gal/min)Max.: 26,900 l/min
(7,106.23 us gal/min)- Power
Min.: 7.5 kW
(10.2 hp)Max.: 132 kW
(179.47 hp)
Description
PM Energy-efficient screw compressors
Equipped with the new PM (permanent magnet) motors
Oil-cooled motor anchor floating in magnetic field without bearing
Compressor pump bearings oil cooled
IP65 class, so dust and waterproof (ideal for sandblasting)
IE5 Plus efficiency class, save up to 50% on your energy consumption
Equipped with VSD frequency controller
Speed range from 800 rpm to 3000 rpm
Noise pollution at 1 meter 62 dBa
Touch screen gives access to all settings
Option: by internet central control all over the world
400 volts 50 HZ
External filters make maintenance cheaper
All compressed air pipes and connections in stainless steel
Available from 10 HP to 350 HP
