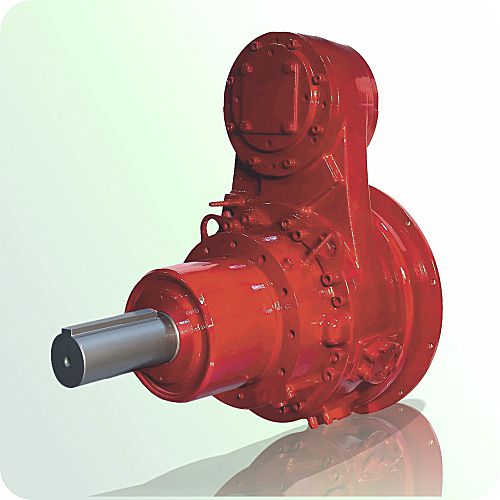

Power take-off for heavy-duty applications HP500 series PTO

The HP500 hydraulic power take-off is an oil-filled, multiple disc, hydraulically-actuated, self-adjusting clutch. The HP500 has been developed with a number of unique features that offer reliability, productivity and power. The HP500 has been designed for a wide range of heavy-duty applications including crushers, grinders, mulchers, dredgers, heavy-duty drills and many others. Features and benefits of the HP500 series include hydraulically actuated and self-adjusting wet clutch, suitable for in-line and side-load applications, advanced control system for smooth engagement, remote actuation via J1939 or switch input, no pilot bearing, and high side load capability. » Maximum power rating 373 kW (500 hp) @ 1800 rpm. » Optional single tower (2-pads) or two tower (4-pads) auxiliary drive. » 298 kW (400 hp) maximum capacity per tower. » 336 kW (450 hp) maximum capacity for both towers. Follow the link for full specifications of this new HP500 series and others in the range of hydraulically actuated power take-off units.
