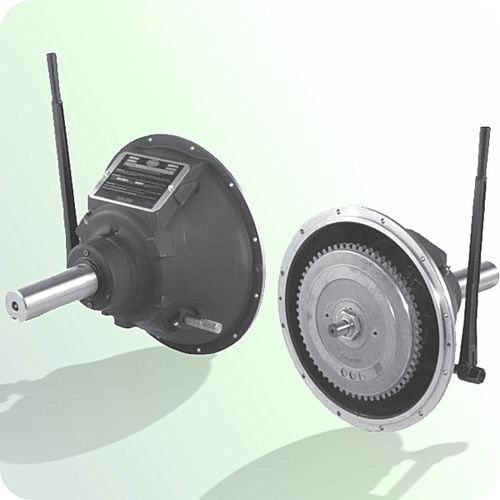

Disc clutch SP114P series

manualmechanicalPTO

Standard SP114P Series Clutch » Tapered Roller Main Bearings. » Available in sizes SAE 11.5 to SAE 21 » Optional bearing throw out collar. » Optional sintered iron plates. » Built in hex nut. » More suitable for side load applications. » Allows for more frequent engagements. » Creates 25% higher torque capacity with sintered iron plates. » Eases adjustment verification SP114P1; 1 SAE housing, max input 1099 Nm (organic), 1370 Nm (sintered), max safe speed with solid plates 2400 rpm with cast drive ring, 3000 rpm with nodular drive ring, max safe speed with split plates 1950 rpm with cast drive ring, 2750 rpm with nodular drive ring, weight 118 kg. All clutch engagements to be with prime mover below 1000 RPM. High inertia loads may require use of larger clutch. See link for full technical specifications.
