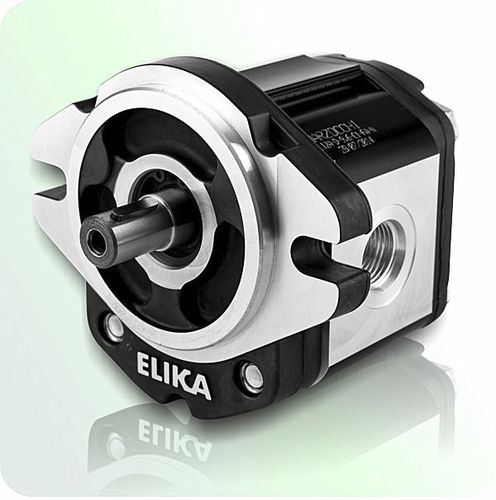

Helical gear hydraulic pump Elika 2A Series

flange-mountaxialradial

Low noise, high efficiency gear pump, Elika, ELI2 with displacements from 7.0 cm³/rev to 35.1 cm³/rev. Up to maximum 310 bar peak pressure. Flow up to 52.6 litres/min. at 1500rpm. Maximum rotational speed up to 4000 rpm. Noise levels between 47 to 58 dBA depending on size of pump. The group II ELI2 is the first in the series of ELIKA range and includes hydraulic helical gear pumps with displacement from 7 to 35 cm³/rev; perfectly interchangeable with the standard gear pumps. Specific compensation areas into flange and cover, insulated by special gaskets reinforced with anti-extrusion, allow for fully free axial and radial movement of the bushings, which is proportional to pump operating pressure. In this way, internal leakage is dramatically reduced, ensuring very good volumetric and mechanical pump performances, as well as proper lubrication of pump’s moving parts. ELIKA® pumps are available in both uni-directional clockwise or counter clockwise rotation. Do you require a pump / coupling / bellhousing package? jbj Techniques can supply these and more including pump drives / PTOs.
