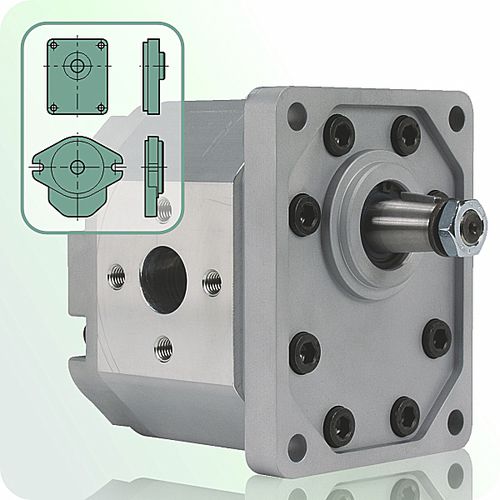

Gear hydraulic motor ALM3 Series

Group 3 hydraulic gear motors with displacement from 22 to 87 cm³/rev. max. speed 2,000 to 3,500 rpm, flow at 1500 rev/min 31 to 124 litres/min, depending on model. A range of mounting flanges, output shafts, and ports are available to suit a variety of applications. Convert hydraulic pressure and flow into torque and angular displacement, rotary mechanical power, applied to a load via the shaft. Hydraulic fluid is moved into the motor causing the matched gear set to rotate. One of the gears is connected to the motor output shaft so producing the rotary mechanical power. Visit www.jbj.co.uk/gear-motors.html for: » Frequently used mathematical formulas. » A guide for selecting the right size Hydraulic Gear Motor. » Example calculations with performance graphs. Full technical specification catalogue available at ~ www.jbj.co.uk/e-publications/ALM-series-gear-motors-from-jbj-Techniques-Limited/4/index.html
