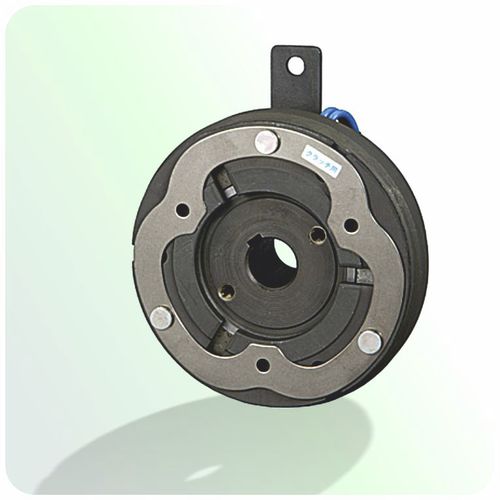

Disc clutch TMC serieselectromagneticzero-backlash
Add to favorites
Compare this product
Characteristics
- Type
- disc
- Operation
- electromagnetic
- Other characteristics
- zero-backlash
- Torque
Min.: 5.4 Nm
(3.9828 ft.lb)Max.: 199.3 Nm
(146.9961 ft.lb)- Rotational speed
3,000 rpm, 3,600 rpm, 4,000 rpm, 4,500 rpm, 5,000 rpm
(18,849.56 rad.min-1, 22,619.47 rad.min-1, 25,132.74 rad.min-1, 28,274.33 rad.min-1, 31,415.93 rad.min-1)
Description
Clutch designed for general industrial use. Compact design with a thin overall profile. Zero backlash armatures can be built into custom hubs. Clutches are available with bearing supported field or a (no bearing) flange field.
Fast Response; TM series clutches are dry type single disc units with no sliding parts. That means you can count on fast response time.
No Backlash Armature; By mounting the armature to its hub by means of leaf springs, black lash is minimized and armature rattle is eliminated.
Compact Design.; The compact desgin of the TM series reduces mounting requirements and makes installation a snap.
Mounting Flexibility.; The TM series can be provided with a flange mount or bearing mount design.
Low Inertia; Fast response and low inertia are due to the TM series low weight and compact design.
