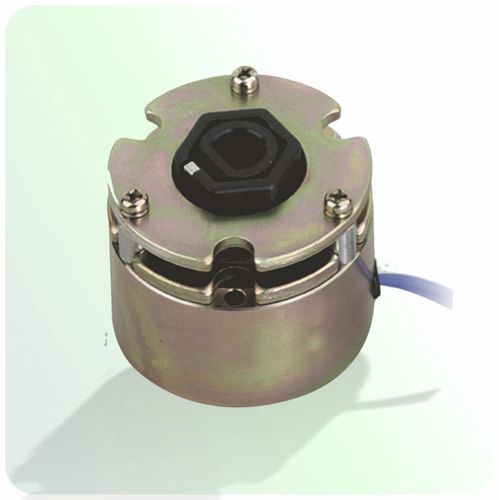

Friction brake MCNB series

electromagneticspring activated

Small spring applied brake available with either D hub designs or set screws. Standard voltages are 24 and 45 but other voltage options are available. Units are designed to give 100% rated torque right out of the box. No burnishing required. 100% Rated Torque; You can count on getting the rated torque for holding applications right out of the box. Longevity; Wear-resistant friction material and corrosion resistant surfaces provide extended operational life. Voltages Available; The MCNB series brake is available in 24VDC, 45VDC or 90VDC. (The 45VDC type can be used with half-wave rectification of 100VAC). Non-asbestos Friction Material; The MCNB series utilize non-asbestos friction discs, complying with current asbestos related safety regulations. High Reliability; Corrosion resistant stainless steel disc plate provides reliable operation. Two Bore Types Offered. In the new series a standard D cut metric bore is available. This is a plastic molded hub with an anti rattle feature.In the older version a standard machine bore is available in both inch and metric dimensions with two set screws.
