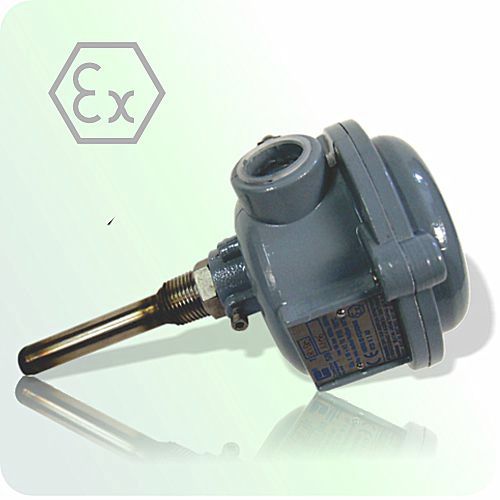

Adjustable thermostat Tri Series

brassstainless steelIP65

ATEX certificated thermostat with expanding liquid probe, particularly suitable for automatic setting of the temperature of liquids as well as other applications in the field of industrial heating. Temperature setting is only possible when the housing is open. This operation must not be carried out when the equipment is live. In no circumstances when there is dangerous atmosphere present. Internal setting prevents unauthorised or accidental adjustment. ‍ External sheath in tropicalised brass OT 58 - UNI 2012. Stainless steel AISI 303 or AISI 316 on request. Data Protection code: EEx d Class: 1 - Hz Temperature Class: T6 Degree of Protection: IP 65 Maximum Current: 10 A Maximum Voltage: 380 V AC Maximum Temperature Setting: 350°C Certified: .CESI AD 87.8.116X Contact Switched
