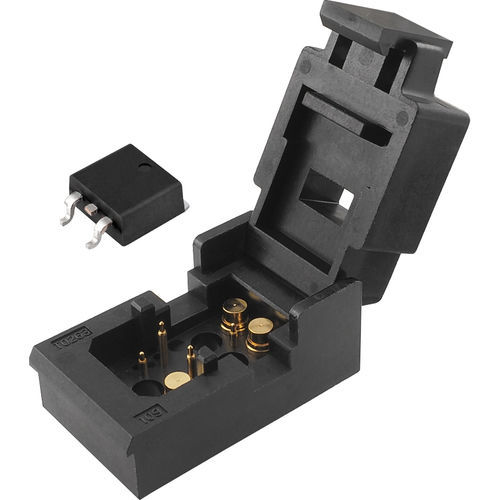

Transistor outline (TO) package test socket GD18-TO263-burn-inKelvin
Add to favorites
Compare this product
Characteristics
- Options
- burn-in, Kelvin, for transistor outline (TO) package
Description
TO Package Test Socket
For TO-263/D2-PAK
Size18x32.9mm / 0.71x1.30"
Clamshell
- Burn-in Test
- Kelvin Contact(Option)
- Current Rating : 10A
- Operating Temperature :
[Acceptable Device]
FDB28N30 (ON Semiconductor)
IRFS7437PbF (Infineon)
STB11NK50ZT4 (STMicroelectronics)
C3D06060G (CREE)
SK107114 (Sanken)
DMTH4004SCTB (Diodes Incorporated)
IXTA1R6N50D2 (IXYS)
** Including terminal temperature rise.
Also possible to support other terminal patterns.
After conducting a simulation, we will decide which dimension
to adopt and make a proposal.
Through holes KG,DK,SK are for Kelvin contact.If Kelvin Contact is not required, these holes are not necessary.
Able to support other device size. Please contact us for more information.
Although the device is listed, but it may not be compatible due to the large tolerance of the device dimension.
Therfore, please send the sample of the device in advance and we will check the compatibility.
