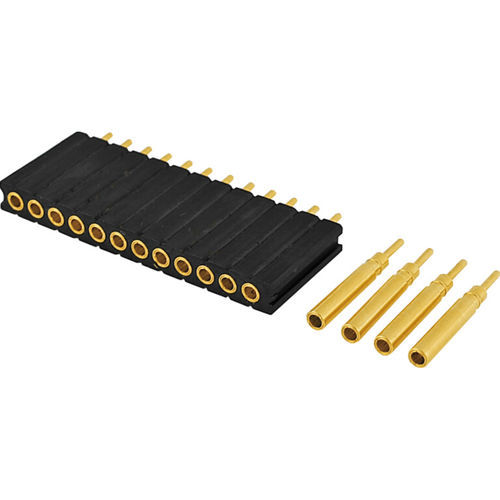

Sockets for Power IC
Standard type
Single in Line
●How to order
ex: PDSA-1076-Sxx-GG
x:Number of positions 2 to 16
Dielectric Strength -
Insulation Resistance - -
Operating Temperature
EX.) PDSA-1076-Sxx-GG
x = Number of pins (2-16)
By customizing the arrangement of socket pins,
it can also be used for evaluation of power semiconductors such as IPM and IGBT.
Possible for Kelvin measurement
Able to select the wiring specifications
Support the High Temperature environment
Positioning boss enable the layout with high position accuracy
According to the contacts are 2.85 mm from the top of the socket, it's able to reach the measurement with low inductance.
Board mounting strength is secured by screw and nut.
