Nano connector NADWdatamicro-Drectangular
Add to favorites
Compare this product
Characteristics
- Type
- data
- Format
- micro-D
- Shape
- rectangular
- Connection type
- female
- Electrical characteristics
- insulated
- Other characteristics
- double-row, nano
- Operating temperature
Max.: 200 °C
(392 °F)Min.: -55 °C
(-67 °F)
Description

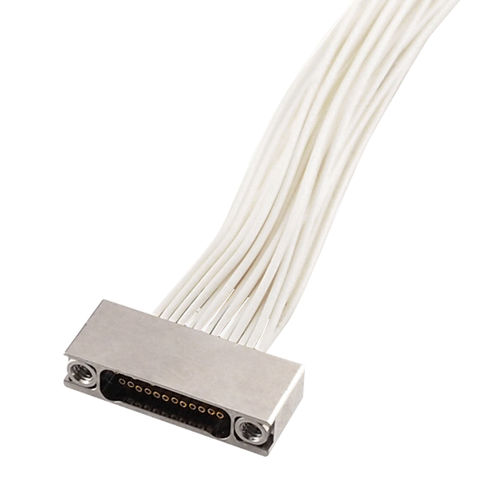

Nano Dsub Connector
with Double Side Insulated Wire
Receptacle to Receptacle
Nano connectors are designed and manufactured by JC Electronics Corporation
compliant with MIL-DTL-32139 standards. A small, highly reliable connector.
- Since the contact pitch is 1/4 of Dsub and 1/2 of Micro-D, it can be used in various applications that require small size, light weight and space saving.
- By high reliable precision machining of the contact area is ensures reliable
contact even under severe conditions such as vibration,shock and thermal shock.
- The number of pins is available from 9, 15, 21, 25, 31, and 37 for the double-row types.
We manufactured the harness assembly in Japan.
- Also supports customer-specific customized products.
Catalogs
No catalogs are available for this product.
See all of JC CHERRY INC.‘s catalogs
