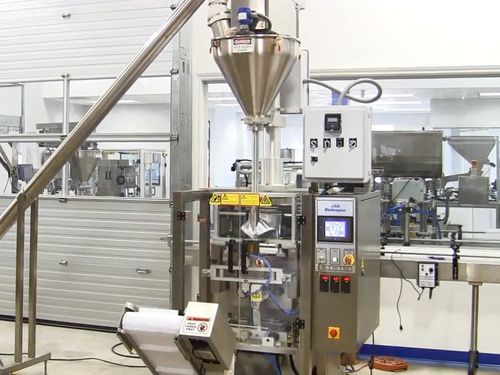

Vertical bagging machine Redeepac 520

VFFSautomaticfor the food industry

The Redeepac 520/Powders is a compact, vertical form, fill and seal (VFFS) machine. It combines simplicity of design with a compact footprint to provide a sturdy, portable machine for use in many applications. It automatically forms a bag, fills it with a powder-based product, then seals and separates the finished package. Features • Laser cut and curved machine frame (print registration photocell) • Forming tube replaceable without tools (hot foil printer) • Bag length adjust through display (additional forming tube) • Length registered by encoder (hole punch) • Motorized film unwind (discharge conveyor) • Control with up to 10 programs in memory (vacuum pack) • Lexan polycarbonate safety cover with micro switches (gas flush) • Bag counter – partial and total (stainless steel construction) Specifications • Type of Film: 50 - 150 my • Bags - Width Sizes: Min. 100 mm - Max. 230 mm 4" - 9.5" • Bags - Length Sizes: Min. 100 mm - Max.300 mm 4" - 12" • Machine Sizes: 2350mm x 1320 mm x 1500 mm H 92.5" x 52" x 60"
