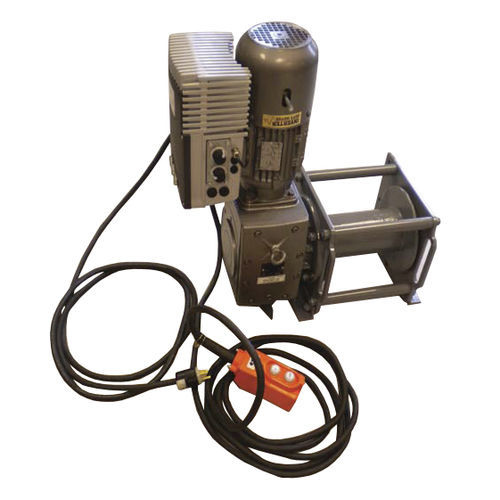

Electric winch WK serieswire ropeliftingpulling
Add to favorites
Compare this product
Characteristics
- Operation
- electric
- Type
- wire rope
- Application
- lifting, pulling
- Other characteristics
- worm gear, rugged, horizontal, vertical, single-phase, portable
- Capacity
455 kg, 910 kg
(1,003.1 lb, 2,006.2 lb)- Speed
3,600 mm/min, 6,000 mm/min
(2.4 in/s, 3.9 in/s)- Cable length
6.4 mm, 7.9 mm
(0.25 in, 0.31 in)- Weight
63.6 kg, 75 kg
(140.214 lb, 165.347 lb)
Description
The WK Series Winch Includes Extended Drums and Guards, and They Are Also Available In Other Voltages.
Contact us for any customized application you have
The WK Series Winches have sealed bearings and feature sturdy steel construction with weather resistant acrylic-enamel paint. They have heavy duty control pendants and power cords. The WK Series are direct drive (no chains).
These portable utility electric winches provide rugged, economical general purpose pulling and lifting. Our WK Series Winches operate on 115-volt single-phase power and are equipped with heavy duty mounting feet that allow for horizontal, as well as vertical mounting. Redundant braking makes these winches safe for lifting applications in addition to horizontal pulls. A high ratio worm drive and spring applied, electric release holding brake prevents accidental pay out in the event of power loss.
