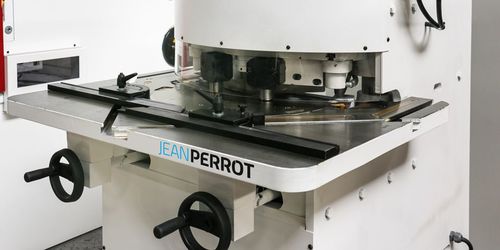

Variable-angle notching machine

hydraulic

Our hydraulic variable angle notching machines allow simple and fast cutting of steel sheets up to 6 mm thick and stainless steel sheets up to 3 mm thick. Features of our notching machines: 2 hand wheels to set eadily the notching angle Protractor to adjust precisely the notching angle Squaring guides, scales, and angle gauge. Automatic blade gap adjustment for all sheet thicknesses. Optimal safety for operators thanks to front, back & side protectors Scrap collecting system Notching capacities and other capacities: Cutting length up to 200 mm Cutting thickness capacity up to 6 mm for a density of 42 kg / mm 2 Cutting thickness capacity up to 3 mm for a density of 70 kg / mm2 Cutting angle: 5° Notching angle (3 mm): 30-140° Cuts per minute: 50
