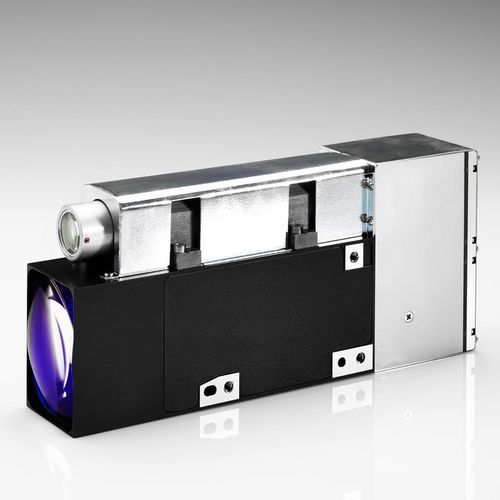

Laser distance sensor ELEM 10k

for military applications

The ELEM 10k laser rangefinder measures distances of non-cooperative targets within a rage of typically more than 10 kilometers. The module is equipped with a flashlamp-pumped Erbium:glass solid-state laser. The ELEM 10k is designed to be easily integrated into observation systems and multi-sensor platforms. Technical data (excerpt) Feature - Total measuring range: - 50 m ... 39,999 m Typical measuring range: - > 10,000 m (NATO target, 10% albedo) Typical measuring rate: - 0.3 Hz Maximum measuring rate: - 1 Hz Accuracy: - < 5 m Laser: - flashlamp-pumped Erbium:glass solid-state laser Laser class: - 1 M Dimensions: - 210 mm x 40 mm x 90 mm Weight: - < 940 g Special features: - Multiple target detection, 5 targets, 20 m target discrimination
