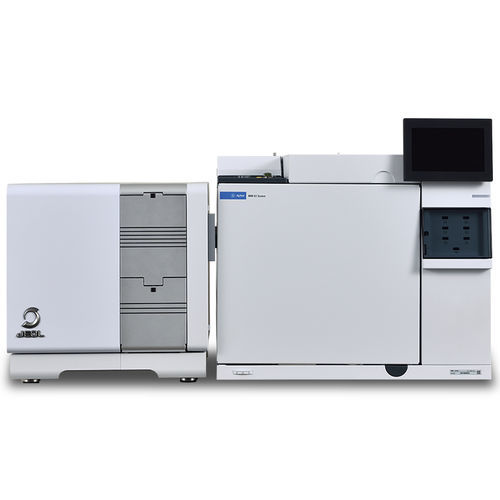

Gas chromatograph JMS-Q1600GC

laboratorycoupled to a mass spectrometerquadrupole

"Zeta" The 6th generation high-end GC-QMS is finally here! The new JMS-Q1600GC UltraQuad™ SQ-Zeta of JEOL is our 6th generation high-end Gas Chromatograph Quadrupole Mass Spectrometer (GC-QMS) based on JEOL's 50 years of MS technologies and experience. From quantitative applications such as environmental samples, water quality control and agrochemicals, to qualitative applications such as materials and aroma analyses, the SQ-Zeta is the ultimate general-purpose GC-MS with high-performance capabilities for a wide variety of measurement and analysis needs. Features High sensitivity and Excellent dynamic range • IDL < 5 fg Eight sequential measurements of 20 fg of octafluoronaphthalene (OFN) were performed by using the standard EI ion source. The instrument detection limit (IDL) is calculated based on the peak area and reproducibility of the extracted ion chromatogram for the molecular ion. An IDL of 2.6 fg was achieved for the system. • Wide dynamic range OFN at concentrations ranging from 0.005 to 1,000 pg / uL were measured by using SIM mode with the standard EI ion source. A calibration curve with good linearity was obtained with a coefficient of determination of 0.999 or better. A wide dynamic range of more than 5 orders of magnitude is useful not only for quantitative analysis, but also for qualitative analysis of complex mixtures with different concentrations.
