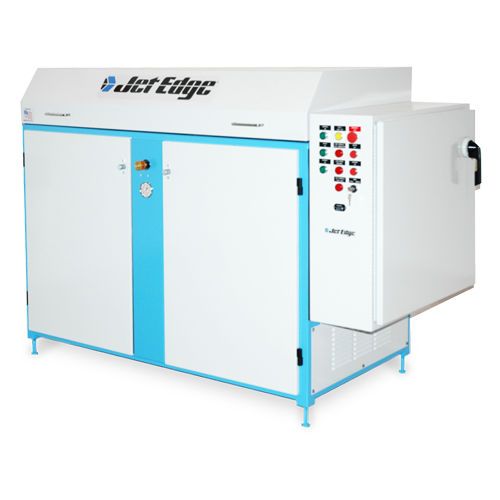

Piston pump IP60-30

waterelectricstationary

The IP60-30 is designed for shops that desire the reliability of a hydraulic intensifier pump, but have limited power. This pump is capable of producing 0.6 gpm (2.3 lpm) of UHP water at a continuous operating pressure of 55,000 psi. It includes a hydraulic accumulator to provide smoother hydraulic pressure, reduce spikes, and prolong hydraulic pump life. CONSTRUCTION • Heavy-gauge sheet metal covers • Rugged all-steel welded framework • Hinged cover & quick-remove access covers CONTROLS • UL Certified electrical panel • Safety shutdown systems • Automatic safety pressure bleed-down valve INTENSIFIER PUMP • Single, 1 quart (0.9 liters) attenuator • Single piston, dual plunger, reciprocating pump • Rated pressure: 60,000 psi (4100 bar) • UHP flow rate: 0.6 gpm (2.3 lpm) • Max rated orifice size .010 in (.25 mm) ELECTRIC MOTOR • Motor output: 30 hp (22 kw) • TEFC NEMA premium efficiency motor • Full load amps @ 460vac: (60Hz) 37 • Full load amps @ 230vac: (60Hz) 74 SIZE • Length: 72 in (1,880 mm) • Width: 32 in (940 mm) • Height: 53 in (1,350 mm) • Approximate weight with fluid: 2150 lbs. (975 kg)
