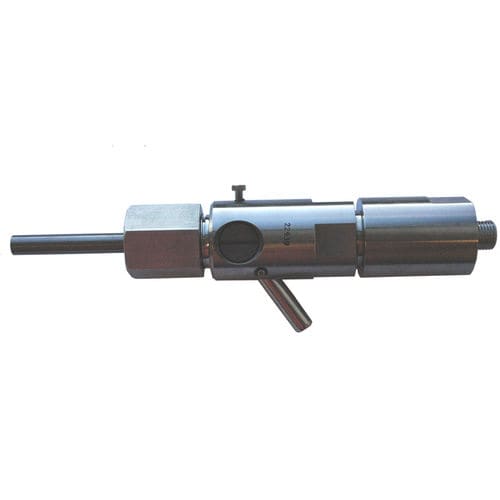

Abrasive water-jet cutting head

high-pressure

Jet Edge’s High Flow Abrasivejet supports an abrasive flow of up to 3.5 lbs/minute (1.59 kg/min) and is capable of delivering up to 7.2 gpm (27.3 L/min) of ultra-high pressure water. It is ideal for cutting thicker materials such as reinforced concrete walls or for separation cutting of steel plate or pipes. • Nozzle Length 4 in (102 mm) • Water Flow Rate 7.2 gpm (27.3 lpm) • Orifice range 0.023-0.042 in (0.058-1 mm) • Operating water pressure 55,000 psi (3,800 bar) max
