Piston pump HERO 100
waterelectricself-priming

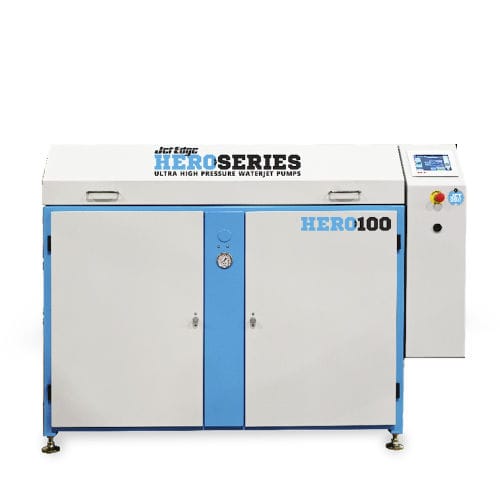

Piston pump - HERO 100  - JET EDGE - water / electric / self-priming
Piston pump - HERO 100  - JET EDGE - water / electric / self-priming
Piston pump - HERO 100  - JET EDGE - water / electric / self-priming - image - 2
Add to favorites
Compare this product


Characteristics

Technology
piston
Fluid
water
Operation
electric
Priming
self-priming
Mobility
stationary
Domain
industrial
Applications
for water-jet cutting machines, UHP
Voltage
460 V, 230 V
Other characteristics
custom
Flow

7.9 l/min
(2.08696 us gal/min)

Pressure

4,100 bar
(59,465.472 psi)

Power

75 kW
(101.97 hp)

Length

84 in

Width

42 in

Height

55 in

Description

The HERO 100 Waterjet Intensifier Pump, with Jet Smart Controls provides the power to drive greater water volumes at Ultra High Pressure. Teamed with a Jet Edge motion system, multiple cutting heads can be configured for both waterjet cutting and abrasive waterjet cutting. Redundant intensifiers can be optioned to ensure you are up and running even when performing scheduled maintenance. Jet Edge allows you to Custom Configure your Intensifier Pump to match your unique application with the best value. If you require an engineering analysis to proof your processing goals, visit our website and schedule a Free Application Analysis. Jet Smart Controls real time feedback on pump performance with advanced maintenance scheduling. Set and monitor pump pressures from the interactive control pad. Receive service reminders or system issue warnings as they arise. Visualize intensifier cycles and easily access operational performance. CONSTRUCTION • Heavy-gauge sheet metal covers • Rugged all-steel welded framework • Hinged cover & quick-remove access covers • Sound Insulating Kit JET SMART CONTROLS • Interactive Controls Touch Screen • Maintenance schedules with prompts • Remote pump start • Wye-Delta Motor Starter with optional Soft Start motor starter • Dual pressure set points • Manual pressure control with Soft Start accumulator • Leakage water collector

Catalogs

No catalogs are available for this product.

See all of JET EDGE‘s catalogs
