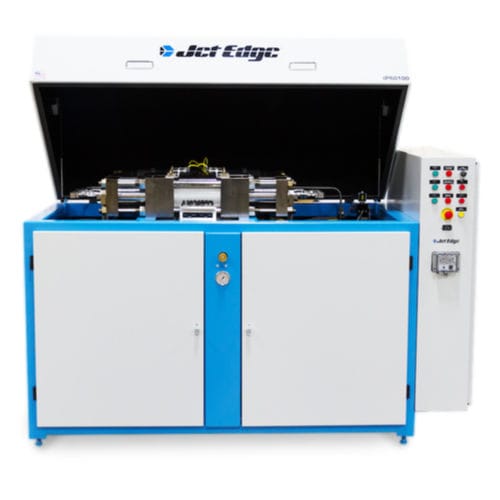

Piston pump IP60-100

waterelectricstationary

The IP60-100 Waterjet Intensifier Pump has a reliable tie-rod design that eliminates threads on the high pressure cylinders, end caps, and hydraulic cylinders—reducing the likelihood of cracking and increases component life. The dual intensifier and optional controls package make this the most versatile pump on the market. Jet Edge can provide customized solutions with a complete engineering analysis of your application. CONSTRUCTION • Heavy-gauge sheet metal covers • Rugged all-steel welded framework • Hinged cover & quick-remove access covers CONTROLS • UL Certified electrical panel • Safety shutdown systems • Automatic safety pressure bleed-down valve INTENSIFIER PUMP • Double, 2 quarts (1.9 liters) attenuator • Single piston, dual plunger, reciprocating pump • Max rated orifice size .021 in (.53 mm) ELECTRIC MOTOR • TEFC NEMA premium efficiency motor • Full load amps @ 460vac: (60Hz) 124 • Full load amps @ 230vac: (60Hz) 248
