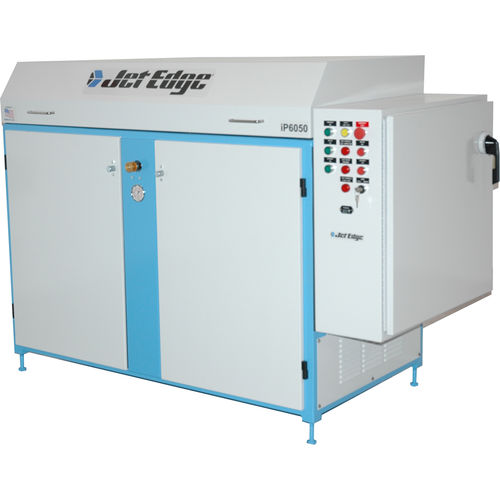

Piston pump IP60-50
waterelectricstationary

Piston pump - IP60-50 - JET EDGE - water / electric / stationary
Piston pump - IP60-50 - JET EDGE - water / electric / stationary
Add to favorites
Compare this product


Characteristics

Technology
piston
Fluid
water
Operation
electric
Mobility
stationary
Domain
industrial
Applications
ultra high-pressure, for water-jet cutting, for water-jet cleaning, UHP
Voltage
460 V, 230 V
Other characteristics
large
Flow

3.7 l/min
(0.97744 us gal/min)

Pressure

4,100 bar
(59,465.472 psi)

Power

37 kW
(50.31 hp)

Length

78 in

Width

34 in

Height

53 in

Description

The IP60-50 Waterjet Intensifier Pump is your intro to pumps. Dependable and easy to maintain, it has the ability to cut and trim a large array of materials including heatsensitive, delicate, and tough substances. This Intensifier Pump is perfect for robotic, mobile, and motion system cutting applications. Jet Edge can provide an engineering analysis and customized solution to meet your application needs. CONSTRUCTION • Heavy-gauge sheet metal covers • Rugged all-steel welded framework • Hinged cover & quick-remove access covers CONTROLS • UL Certified electrical panel • Wye-Delta soft start • Safety shutdown systems • Automatic safety pressure bleed-down valve INTENSIFIER PUMP • Single, 1 quart (0.9 liters) attenuator • Single piston, dual plunger intensifier with tie rod design • Optional redundant intensifier • Max rated orifice size: 0.015 in (0.38 mm) ELECTRIC MOTOR • TEFC NEMA premium efficiency motor • Full load amps @ 460vac: (60Hz) 60 • Full load amps @ 230vac: (60Hz) 120
