Piston pump IP60-150
waterelectricstationary

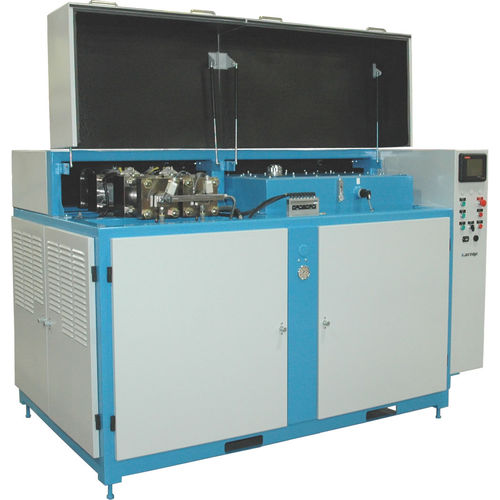

Piston pump - IP60-150 - JET EDGE - water / electric / stationary
Piston pump - IP60-150 - JET EDGE - water / electric / stationary
Piston pump - IP60-150 - JET EDGE - water / electric / stationary - image - 2
Piston pump - IP60-150 - JET EDGE - water / electric / stationary - image - 3
Piston pump - IP60-150 - JET EDGE - water / electric / stationary - image - 4
Add to favorites
Compare this product


Characteristics

Technology
piston
Fluid
water
Operation
electric
Mobility
stationary
Domain
industrial
Applications
ultra high-pressure, for water-jet cutting, UHP
Other characteristics
low-pressure
Flow

11.4 l/min
(3.01156 us gal/min)

Pressure

4,100 bar
(59,465.472 psi)

Power

112 kW
(152.28 hp)

Length

2,110 mm
(83 in)

Width

1,430 mm
(56.3 in)

Height

1,430 mm
(56.3 in)

Description

The IP60-150 reigns supreme and provides thicker, better and tougher cutting solutions. Packed with power, this intensifier pump is capable of running multiple cutting heads with high abrasive content for high speed, high finish accuracy. This is the pump of choice for large table cutting, surface preparation applications and mobile cutting. Contact Jet Edge for custom solutions and a full engineering analysis of your application. CONSTRUCTION • Heavy-gauge sheet metal covers • Rugged all-steel welded framework • Hinged cover & quick-remove access covers CONTROLS • UL Certified electrical panel • Safety shutdown systems • Automatic safety pressure bleed-down valve • Optional advanced control package INTENSIFIER PUMP • Double, 2 quarts (1.9 liters) attenuator • Single piston, dual plunger, reciprocating pump • Rated pressure: 60,000 psi (4,100 bar) • UHP flow rate: 3.0 gpm (11.4 lpm) • Max rated orifice size .025 in (.64 mm) WATER/ENVIRONMENT • Low-pressure water supply requirement 5.2 gpm (19.7 lpm) @ 60 psi (4 bar) min. • Max temp 70°F (21°C) • Ambient temperature: 50°-100°F (10°-37°C) HYDRAULICS • Axial piston, variable displacement, pressure-compensated hydraulic pump • Thermostatically-controlled cooling loop • Hydraulic accumulator prolongs component life and improves output quality • Reservoir capacity: 103 gallons (390 liters)
