Motorized welding carriage TKB series

beam traveling

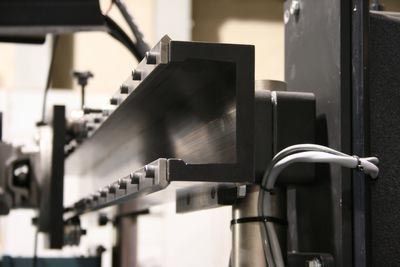

Side Beam Tracks and Travel Carriages Wide selection of side beam tracks and carriages for a variety of applications Several models are available to satisfy varying needs. Some models were designed with precision in mind, while other models are intended for heavy duty loads A typical TKB track and carriage system consists of a track and a carriage A 9627 linear control is standard with all powered carriages TKB-Bench Style Track and Carriage 50 lb (22 kg) load carrying capacity out 6” (150 mm) from the carriage’s face plate The standard track length is 6” to 48” (150 to 1220 mm); other sizes are available – consult the factory It can carry the torch and the arc length control actuator or a motorized slide The carriage rides on hardened vee way rails using hardened wheels The powered carriage uses a backlash free linear actuator drive Non-powered carriage options are available Optional track columns can be built to order to match your application For mounting purposes, the carriage’s face plate measures 8” x 6” (200 mm x 150 mm)
