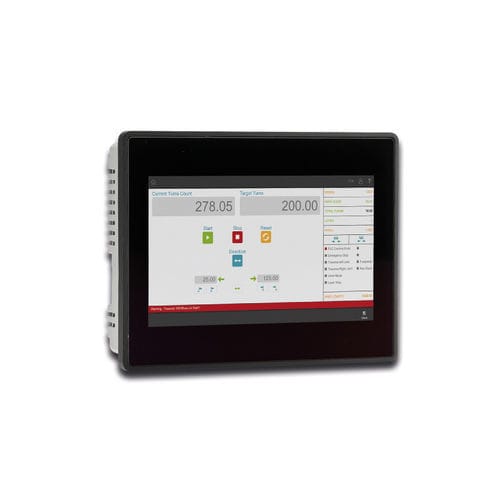

Projected capacitive touchscreen HMI JetView 1007multitouch screenfor integration800 x 480
Add to favorites
Compare this product
Characteristics
- Interface
- projected capacitive touchscreen, multitouch screen
- Mounting
- for integration
- Resolution
- 800 x 480
- Processor
- ARM Cortex-A8
- Screen type
- TFT LCD
- Operating system
- Windows
- Protection level
- IP65
- Connectivity
- USB, Ethernet
- Other characteristics
- widescreen
- Applications
- enclosure
- Screen size
7 in
Description
The HMIs JetView 1007 offer a universal widescreen display with Projected Capacitive Touchscreen (PCAP). The HMI has two Ethernet ports with switch functionality and is ideal for integration into existing networks. It comes with a scratch-proof and dirt-repellent real glass surface.
Brightness - 300 cd/m²
Front - Glass
Function keys - -
Softkeys - -
Operating system - Windows® CE 6.0 R3 / Windows® EC 2013
Internal disk drives - -
Ports and interfaces - 2x Ethernet with integrated switch function, 2x USB, 1x multi-standard serial port, 1x SD card slot
Processor - ARM Cortex A8
Clock frequency - 600 MHz
Memory - 256 MB RAM, 256 MB flash
Operating voltage - DC 24 V (DC 18 ... 30 V), 0.6 A at DC 24 V
Operating temperature - 0 °C ... 50 °C
Storage temperature - -20 ... 70 °C
Enclosure material - Aluminum
Weight - Approx. 1.3 kg
Dimensions (W x H x D) - 187 x 147 x 55 mm
Certifications - CE
